Machine Learning for mental EEG Prediction with Matlab

Machine Learning for mental EEG Prediction with Matlab

Brain-computer interaction is a rapidly growing technology that helps people with disabilities such as paralytic patients and provides solutions to those patients with neurological disabilities. The enthusiasm in this field has increased dramatically every day. The brain-computer interface (BCI) system provides users with a complete communication system between their bodies and external devices. It's a system in two ways. The imaginary motor process is a mental activity without any real movement of the body. Here, we will try to achieve a simple goal, given a moto imagery EEG signal, we will try to predict the class using machine learning.

Machine Learning for mental EEG Prediction with Matlab


Brain computer interaction is a rapidly growing technology that helps people with disabilities such as paralytic patients and provides solutions to those patients with neurological disabilities. The enthusiasm in this field has increased dramatically every day. The brain computer interface (BCI) system provides users with a complete communication system between their body and external devices. It's a system in two ways. The imaginary motor process is a mental activity without any real movement of the body. Here, we will try to acheive a simple goal, given a moto imagery EEG signal, we will try to predict the class using machine learning.

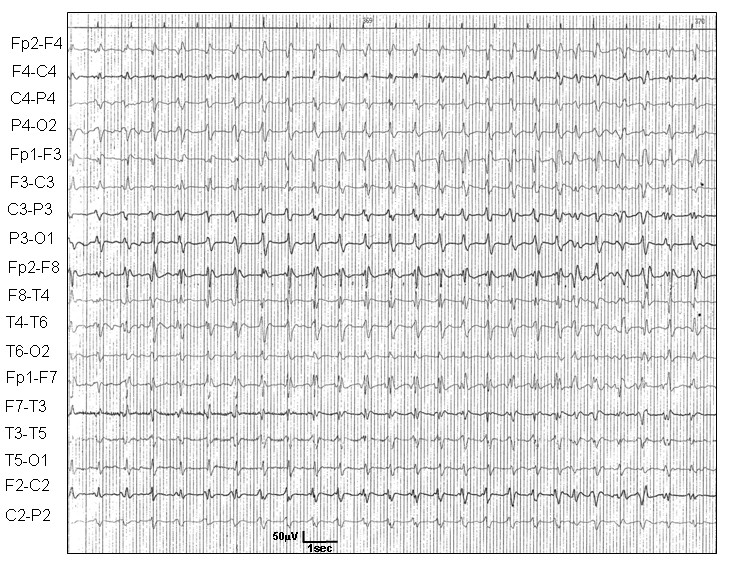

Figure: EEG Signal. Credit: Wikimedia
First load the EEG data, for our case it's in .mat format. After that, we need to format the data.

load('SubA_5chan_3LRF.mat')



% For DWT
SubA_5C_LRF_c1 = zeros(270,1024);
SubA_5C_LRF_c2 = zeros(270,1024);
SubA_5C_LRF_c3 = zeros(270,1024);
SubA_5C_LRF_c4 = zeros(270,1024);
SubA_5C_LRF_c5 = zeros(270,1024);
% 270 samples, 5 channels, 1024 data points
% 1 response
% 1024 = 256 * 4 = sampling rate * sec

for smp = 1:270
    SubA_5C_LRF_c1(smp,:) = EEGDATA(1,:,smp);
end

for smp = 1:270
    SubA_5C_LRF_c2(smp,:) = EEGDATA(2,:,smp);
end

for smp = 1:270
    SubA_5C_LRF_c3(smp,:) = EEGDATA(3,:,smp);
end

for smp = 1:270
    SubA_5C_LRF_c4(smp,:) = EEGDATA(4,:,smp);
end

for smp = 1:270
    SubA_5C_LRF_c5(smp,:) = EEGDATA(5,:,smp);
end

After loading the EEG signals, we will denoise the EEG signal with DWT thresolding. (wden function in Matlab)

DWT_SubA_Channel5_coif2_3 = zeros(5,1024,270);

for channel = 1:5
        for sample = 1:270
            DWT_SubA_Channel5_coif2_3(channel, :,...
            sample) = wden(EEGDATA(channel, :,...
            sample),'sqtwolog','s','mln',3,'coif2');
        end
end

function feature_vec = feature_set_gen(mat_y)

dwt_sig = mat_y;
num_feature = 10;


[~, data_pts, num_trial] = size(dwt_sig);
dwt_sig = reshape(dwt_sig,[data_pts, num_trial]);
dwt_sig = dwt_sig';
feature_vec = zeros(num_trial,num_feature); % + 1 for response if used

for nt = 1:num_trial

    % AAC (Avergae amplitude change)
    aac = 0;

    for i = 1:data_pts-1
        aac = aac + abs(dwt_sig(nt,i+1) - dwt_sig(nt,i));
    end

    aac = aac/data_pts;
    feature_vec(nt,1) = aac;

    % DASDV (Difference absolute standard deviation value)
    dasdv = 0;

    for i = 1:data_pts-1
        dasdv = dasdv + (dwt_sig(nt,i+1) - dwt_sig(nt,i))^2;
    end

    dasdv = dasdv/(data_pts-1);

    dasdv = sqrt(dasdv);
    feature_vec(nt,2) = dasdv;


    % Integrated EMG (IEMG)
    iemg = sum(abs(dwt_sig(nt,:)));

    feature_vec(nt,3) = iemg;

    % Mean absolute value (MAV)

    mav = iemg/data_pts;
    feature_vec(nt,4) = mav;

    % Modified mean absolute value Type 2(MMAV2)
    mmav2 = 0;

    for i = 1:data_pts
        tmp = abs(dwt_sig(nt,i));

        if i < 0.12*data_pts
            tmp = (tmp * 4 * i)/data_pts;
            mmav2 = mmav2 + tmp;
        end
        if i > 0.85*data_pts
                tmp = (tmp * 4 * (i-data_pts))/data_pts;
                mmav2 = mmav2 + tmp;
        end
        if i >= 0.12*data_pts && i<= 0.85*data_pts
                mmav2 = mmav2 + tmp;
        end
    end

    mmav2 = mmav2/data_pts;

    feature_vec(nt,5) = mmav2;


    % Myopulse percentage rate (MYOP)

    myop_thres = 0.25;

    myop = (sum(dwt_sig(nt,:)>myop_thres))/data_pts;

    feature_vec(nt,6) = myop;

    % Root mean square (RMS)

    rms = sqrt(sum(dwt_sig(nt,:).^2)/data_pts);

    feature_vec(nt,7) = rms;

    % Slope sign change (SSC)
    ssc_thres = 0.08;
    ssc = 0;

    for i = 2:data_pts-1

        tmp1 = (dwt_sig(nt,i) - dwt_sig(nt,i-1))*(dwt_sig(nt,i) - dwt_sig(nt,i+1));

        if tmp1 >= ssc_thres
            ssc = ssc + 1;
        end
    end

    feature_vec(nt,8) = ssc;


    % Second spectral moment SM2
    sm2 = 0;

    rng default;

    [psd, fbin] = pwelch(dwt_sig(nt,:));

    bin_len = length(psd);

    for j = 1:bin_len
        sm2 = sm2 + psd(j)*(fbin(j)^2);
    end

    feature_vec(nt,8) = sm2;

    % Log detector (LOG)

    logd = exp(sum(log(abs(dwt_sig(nt,:))))/data_pts);

    feature_vec(nt,9) = logd;

    % Waveform length (WL)

    wl = 0;

    for i = 1:data_pts-1
        wl = wl + abs(dwt_sig(nt,i+1) - dwt_sig(nt,i));
    end

    feature_vec(nt,10) = wl;


    % feature_vec(nt,11) = resp;

end
end

ch1_dwt = DWT_SubA_Channel5_coif2_3(1,:,:);
ch2_dwt = DWT_SubA_Channel5_coif2_3(2,:,:);
ch3_dwt = DWT_SubA_Channel5_coif2_3(3,:,:);
ch4_dwt = DWT_SubA_Channel5_coif2_3(4,:,:);
ch5_dwt = DWT_SubA_Channel5_coif2_3(5,:,:);

num_smp = 270;
num_feature = 10;


feature_c1 = feature_set_gen(ch1_dwt); % num_smp*feature
feature_c2 = feature_set_gen(ch2_dwt);
feature_c3 = feature_set_gen(ch3_dwt);
feature_c4 = feature_set_gen(ch4_dwt);
feature_c5 = feature_set_gen(ch5_dwt);

features_response_A = [feature_c1, feature_c2, feature_c3, ...
    feature_c4, feature_c5, LABELS];

Once our feature extraction phase is done, we can use machine learning models to classify the signals. For example, we can use holdout validation method and cubic SVM for classification.

function [trainedClassifier, validationAccuracy] = trainClassifier(datasetTable)
% Convert input to table
datasetTable = table(datasetTable);
datasetTable.Properties.VariableNames = {'column'};
% Split matrices in the input table into vectors
datasetTable.column_1 = datasetTable.column(:,1);
datasetTable.column_2 = datasetTable.column(:,2);
datasetTable.column_3 = datasetTable.column(:,3);
datasetTable.column_4 = datasetTable.column(:,4);
datasetTable.column_5 = datasetTable.column(:,5);
datasetTable.column_6 = datasetTable.column(:,6);
datasetTable.column_7 = datasetTable.column(:,7);
datasetTable.column_8 = datasetTable.column(:,8);
datasetTable.column_9 = datasetTable.column(:,9);
datasetTable.column_10 = datasetTable.column(:,10);
datasetTable.column_11 = datasetTable.column(:,11);
datasetTable.column_12 = datasetTable.column(:,12);
datasetTable.column_13 = datasetTable.column(:,13);
datasetTable.column_14 = datasetTable.column(:,14);
datasetTable.column_15 = datasetTable.column(:,15);
datasetTable.column_16 = datasetTable.column(:,16);
datasetTable.column_17 = datasetTable.column(:,17);
datasetTable.column_18 = datasetTable.column(:,18);
datasetTable.column_19 = datasetTable.column(:,19);
datasetTable.column_20 = datasetTable.column(:,20);
datasetTable.column_21 = datasetTable.column(:,21);
datasetTable.column_22 = datasetTable.column(:,22);
datasetTable.column_23 = datasetTable.column(:,23);
datasetTable.column_24 = datasetTable.column(:,24);
datasetTable.column_25 = datasetTable.column(:,25);
datasetTable.column_26 = datasetTable.column(:,26);
datasetTable.column_27 = datasetTable.column(:,27);
datasetTable.column_28 = datasetTable.column(:,28);
datasetTable.column_29 = datasetTable.column(:,29);
datasetTable.column_30 = datasetTable.column(:,30);
datasetTable.column_31 = datasetTable.column(:,31);
datasetTable.column_32 = datasetTable.column(:,32);
datasetTable.column_33 = datasetTable.column(:,33);
datasetTable.column_34 = datasetTable.column(:,34);
datasetTable.column_35 = datasetTable.column(:,35);
datasetTable.column_36 = datasetTable.column(:,36);
datasetTable.column_37 = datasetTable.column(:,37);
datasetTable.column_38 = datasetTable.column(:,38);
datasetTable.column_39 = datasetTable.column(:,39);
datasetTable.column_40 = datasetTable.column(:,40);
datasetTable.column_41 = datasetTable.column(:,41);
datasetTable.column_42 = datasetTable.column(:,42);
datasetTable.column_43 = datasetTable.column(:,43);
datasetTable.column_44 = datasetTable.column(:,44);
datasetTable.column_45 = datasetTable.column(:,45);
datasetTable.column_46 = datasetTable.column(:,46);
datasetTable.column_47 = datasetTable.column(:,47);
datasetTable.column_48 = datasetTable.column(:,48);
datasetTable.column_49 = datasetTable.column(:,49);
datasetTable.column_50 = datasetTable.column(:,50);
datasetTable.column_51 = datasetTable.column(:,51);
datasetTable.column = [];
% Extract predictors and response
predictorNames = {'column_1', 'column_2', 'column_3', 'column_4', 'column_5', 'column_6', 'column_7', 'column_8', 'column_9', 'column_10', 'column_11', 'column_12', 'column_13', 'column_14', 'column_15', 'column_16', 'column_17', 'column_18', 'column_19', 'column_20', 'column_21', 'column_22', 'column_23', 'column_24', 'column_25', 'column_26', 'column_27', 'column_28', 'column_29', 'column_30', 'column_31', 'column_32', 'column_33', 'column_34', 'column_35', 'column_36', 'column_37', 'column_38', 'column_39', 'column_40', 'column_41', 'column_42', 'column_43', 'column_44', 'column_45', 'column_46', 'column_47', 'column_48', 'column_49', 'column_50'};
predictors = datasetTable(:,predictorNames);
predictors = table2array(varfun(@double, predictors));
response = datasetTable.column_51;
% Train a classifier
template = templateSVM('KernelFunction', 'polynomial', 'PolynomialOrder', 3, 'KernelScale', 'auto', 'BoxConstraint', 1, 'Standardize', 1);
trainedClassifier = fitcecoc(predictors, response, 'Learners', template, 'Coding', 'onevsone', 'PredictorNames', {'column_1' 'column_2' 'column_3' 'column_4' 'column_5' 'column_6' 'column_7' 'column_8' 'column_9' 'column_10' 'column_11' 'column_12' 'column_13' 'column_14' 'column_15' 'column_16' 'column_17' 'column_18' 'column_19' 'column_20' 'column_21' 'column_22' 'column_23' 'column_24' 'column_25' 'column_26' 'column_27' 'column_28' 'column_29' 'column_30' 'column_31' 'column_32' 'column_33' 'column_34' 'column_35' 'column_36' 'column_37' 'column_38' 'column_39' 'column_40' 'column_41' 'column_42' 'column_43' 'column_44' 'column_45' 'column_46' 'column_47' 'column_48' 'column_49' 'column_50'}, 'ResponseName', 'column_51', 'ClassNames', [1 2 3]);

% Set up holdout validation
cvp = cvpartition(response, 'Holdout', 0.25);
trainingPredictors = predictors(cvp.training,:);
trainingResponse = response(cvp.training,:);

% Train a classifier
template = templateSVM('KernelFunction', 'polynomial', 'PolynomialOrder', 3, 'KernelScale', 'auto', 'BoxConstraint', 1, 'Standardize', 1);
validationModel = fitcecoc(trainingPredictors, trainingResponse, 'Learners', template, 'Coding', 'onevsone', 'PredictorNames', {'column_1' 'column_2' 'column_3' 'column_4' 'column_5' 'column_6' 'column_7' 'column_8' 'column_9' 'column_10' 'column_11' 'column_12' 'column_13' 'column_14' 'column_15' 'column_16' 'column_17' 'column_18' 'column_19' 'column_20' 'column_21' 'column_22' 'column_23' 'column_24' 'column_25' 'column_26' 'column_27' 'column_28' 'column_29' 'column_30' 'column_31' 'column_32' 'column_33' 'column_34' 'column_35' 'column_36' 'column_37' 'column_38' 'column_39' 'column_40' 'column_41' 'column_42' 'column_43' 'column_44' 'column_45' 'column_46' 'column_47' 'column_48' 'column_49' 'column_50'}, 'ResponseName', 'column_51', 'ClassNames', [1 2 3]);

% Compute validation accuracy
validationPredictors = predictors(cvp.test,:);
validationResponse = response(cvp.test,:);
validationAccuracy = 1 - loss(validationModel, validationPredictors, validationResponse, 'LossFun', 'ClassifError');

It's also possible to use the Matlab Machine Learning Toolbox which is extremely easy to use. You can use the tool to use multiple classifiers on the feature vectors to compare the accuracy.

Full source code is available at https://github.com/zabir-nabil/eeg-rsenet
